airCube Home WiFi AP

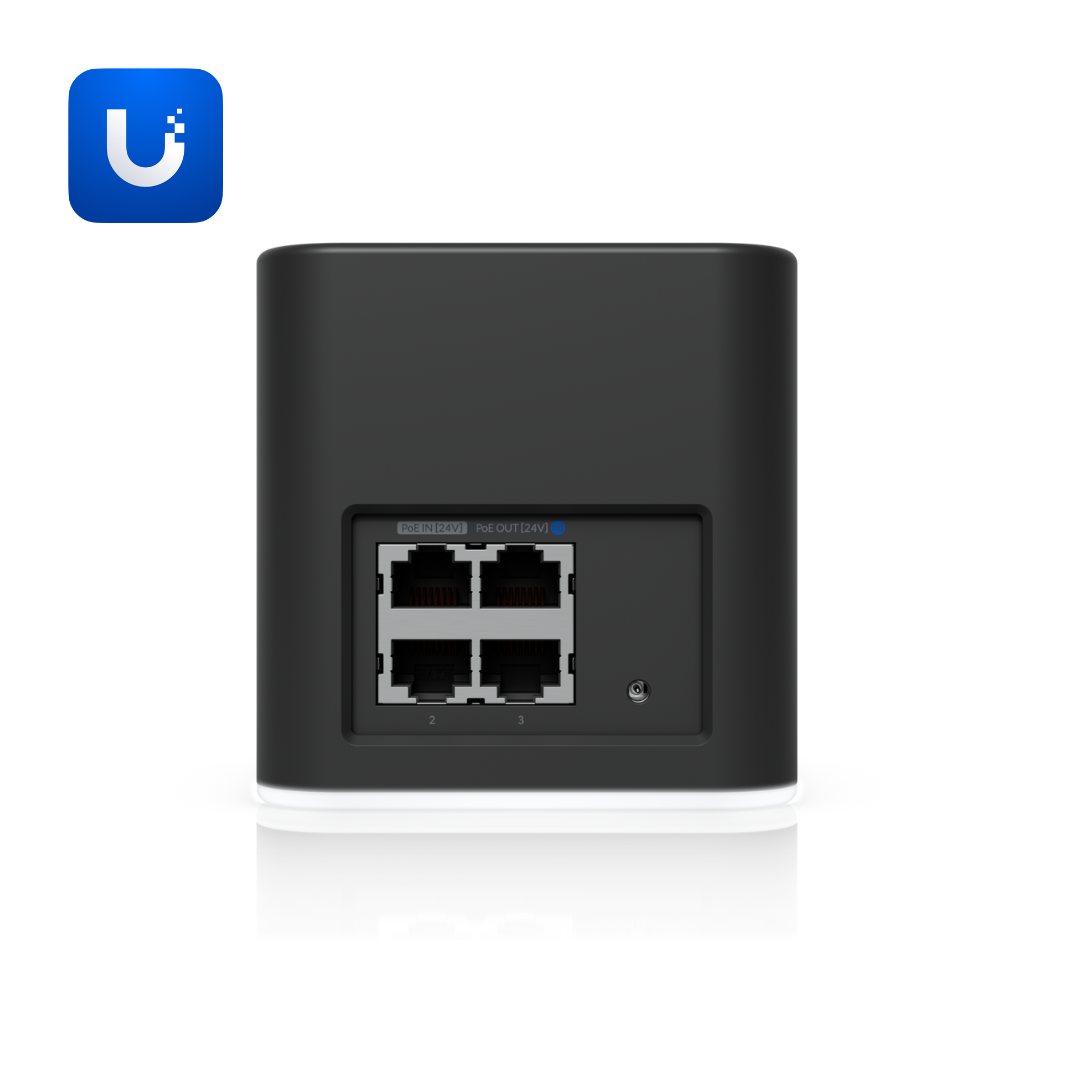

The ACB-AC (airCube Home WiFi AP) is a compact dual-band home WiFi access point purpose-built to interoperate with airMAX CPE devices while providing integrated 24V PoE passthrough for downstream device powering. Measuring 87.8 × 89.5 × 89.25 mm (3.5 × 3.5 × 3.5") and weighing 280 g (9.9 oz), the airCube AC provides (4) GbE RJ45 ports and can be powered via included Micro-USB adapter or 24V DC passive PoE on Ethernet port 1. The controllable 24V PoE passthrough output (pins 4, 5+; 7, 8-) on the WAN port powers downstream airMAX CPE or other 24V passive PoE devices. Management via Ethernet and WiFi with UISP mobile app for fast setup and UISP support for remote network management. ±24kV ESD/EMP protection on both contact and air.

The ACB-AC delivers 802.11ac 2×2 dual-band wireless across 2.4 GHz (300 Mbps, 4 dBi antenna) and 5 GHz (866.7 Mbps, 5 dBi antenna) with 22 dBm maximum TX power for comprehensive home and small office coverage.
Additional specifications:

• Max. power consumption: 8.5W
• Supported voltage range: 22–27V DC
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 5–95% non-condensing
• CE, FCC, and IC certified, fully NDAA compliant

Ideal for home networks, small offices, airMAX CPE interoperability deployments, and remote location WiFi coverage across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring dual-band 802.11ac 2×2 WiFi with 24V PoE passthrough, 4-port GbE switch, and UISP remote management in a compact form factor.
