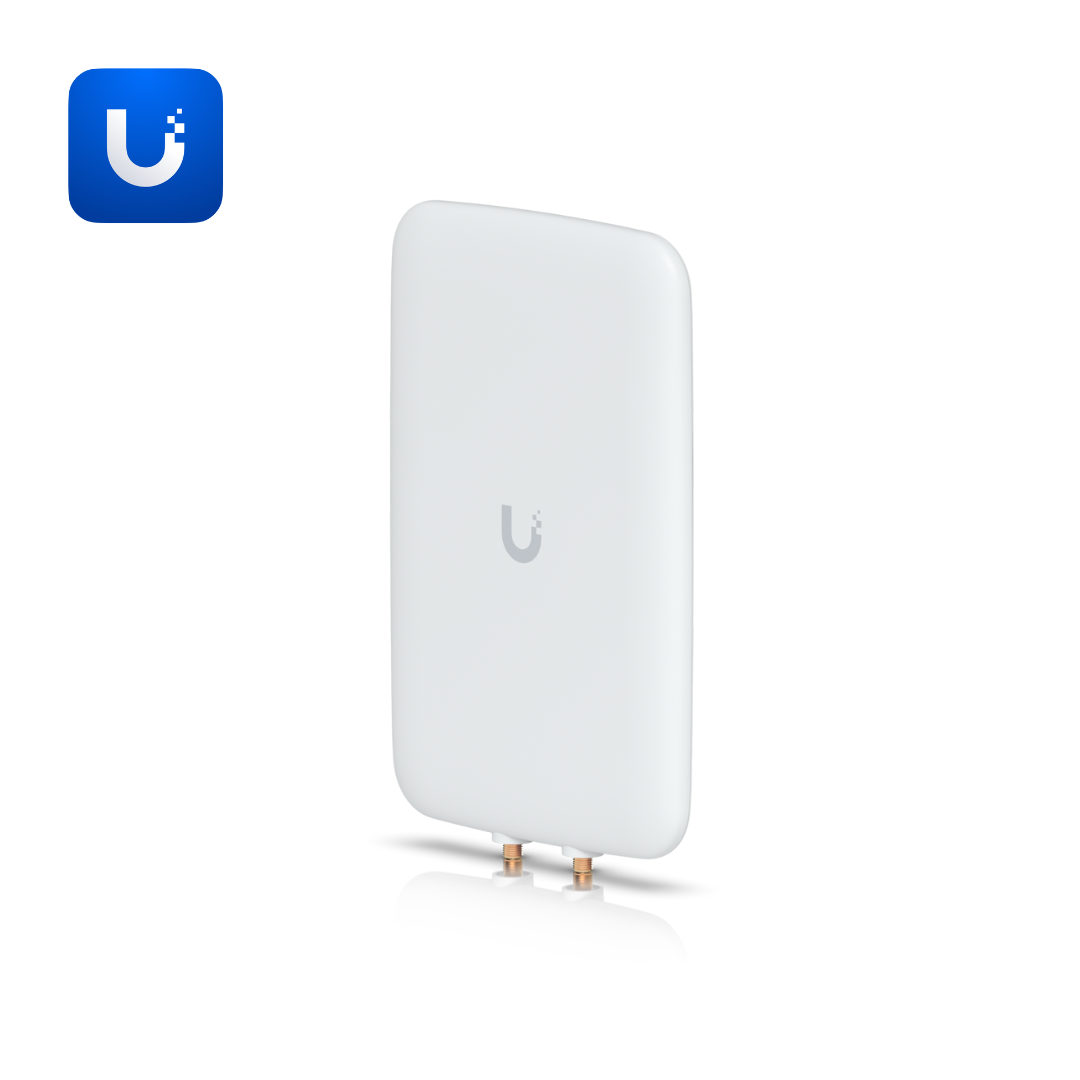

AC Mesh Dual-Band Antenna

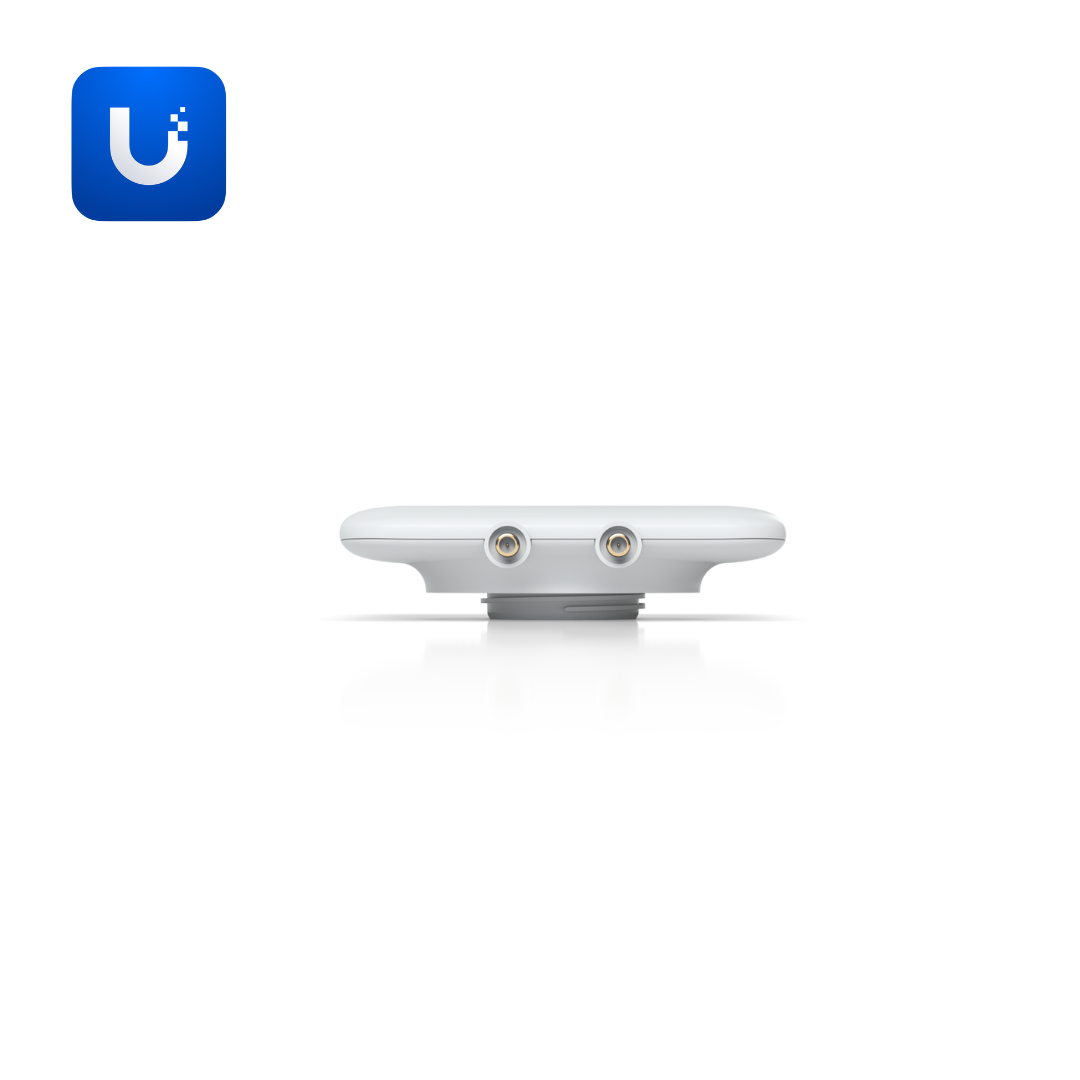

The AC Mesh Dual-Band Antenna (UMA-D) is an **optional directional mesh antenna** designed for AC Mesh deployments. This dual-band antenna features 15 dBi gain on 5 GHz (5.1-5.9 GHz) and 10 dBi gain on 2.4 GHz (2.4-2.5 GHz) for long-range wireless connectivity. High-efficiency directional radiation pattern with 45° HPOL/VPOL/elevation beamwidth on 5 GHz and 90° beamwidth on 2.4 GHz provides focused signal coverage. Dual-linear polarization optimized for 802.11ac with 2 RP-SMA RF connections.

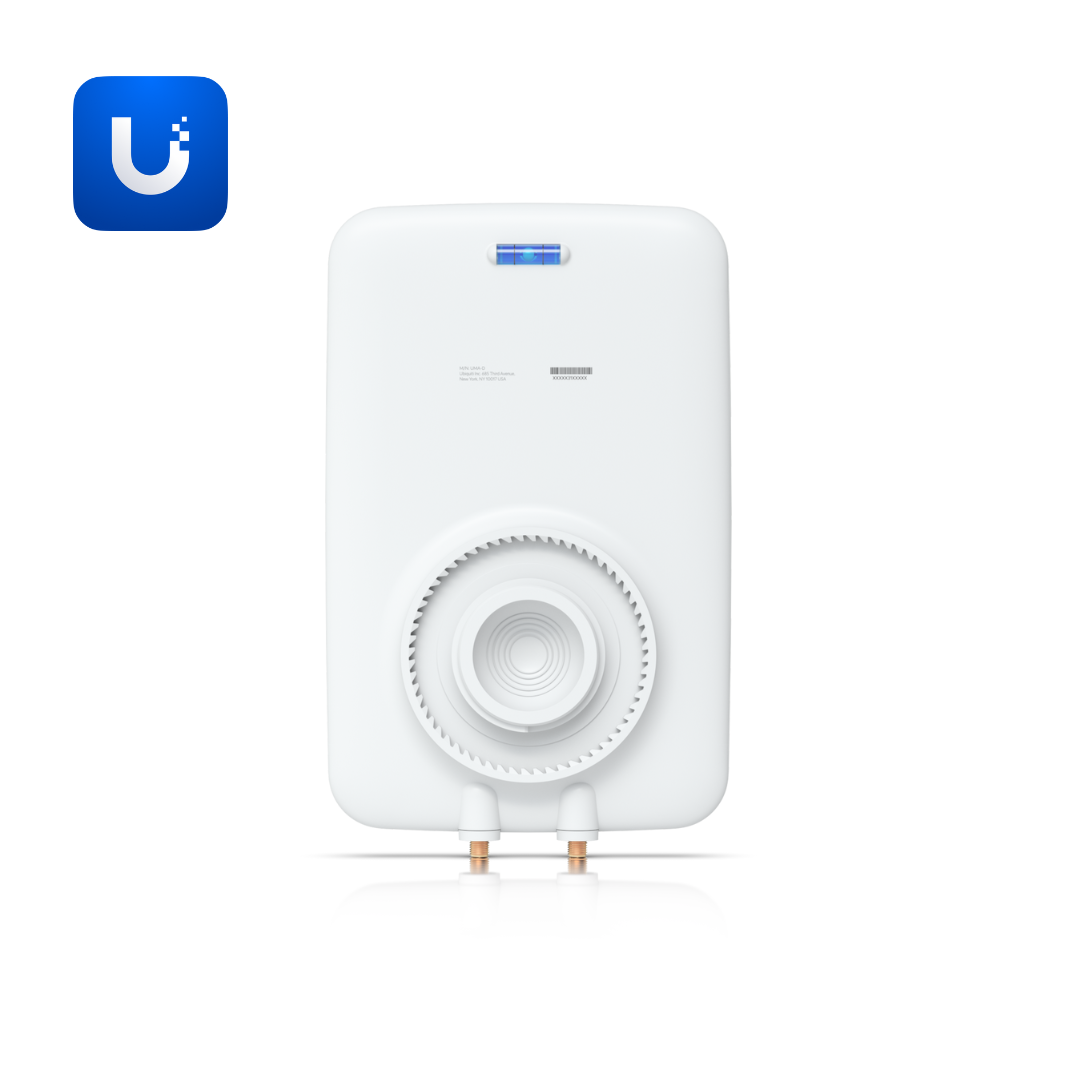

The AC Mesh Dual-Band Antenna provides 30 dB cross-pol isolation on 5 GHz and 25 dB on 2.4 GHz for clean signal transmission. Max VSWR of 2:1 ensures efficient power transfer. Ball joint 3-axis mount enables precise antenna aiming for optimal link performance. Outdoor weather-resistant UV-stabilized plastic enclosure protects against environmental exposure. Compact dimensions of 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3") with 400 g weight (480 g with mount).

Wall and pole mount included for versatile installation options. NDAA compliant with Anatel certification for regulatory compliance.

Ideal for wireless mesh networks, point-to-point links, building-to-building connectivity, outdoor wireless extensions, campus mesh deployments, and long-range wireless applications requiring directional dual-band antenna with precise aiming and high gain.
