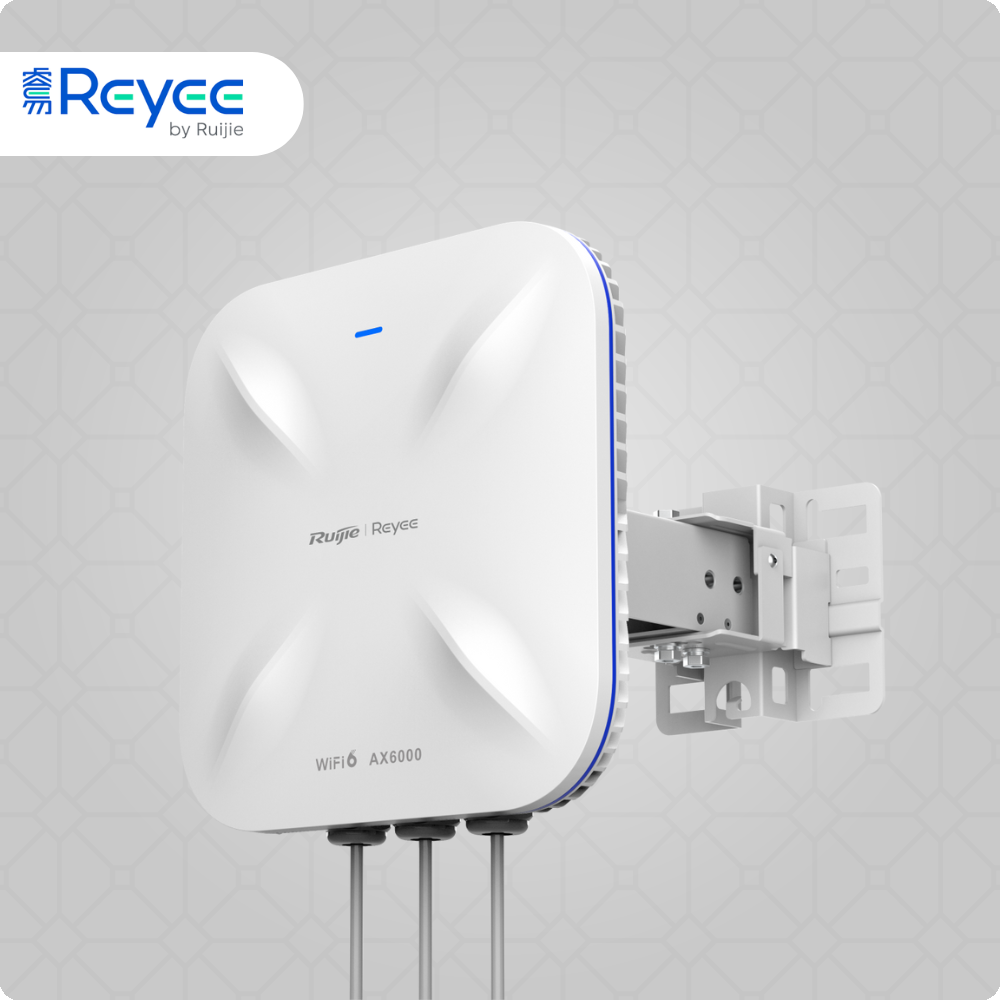

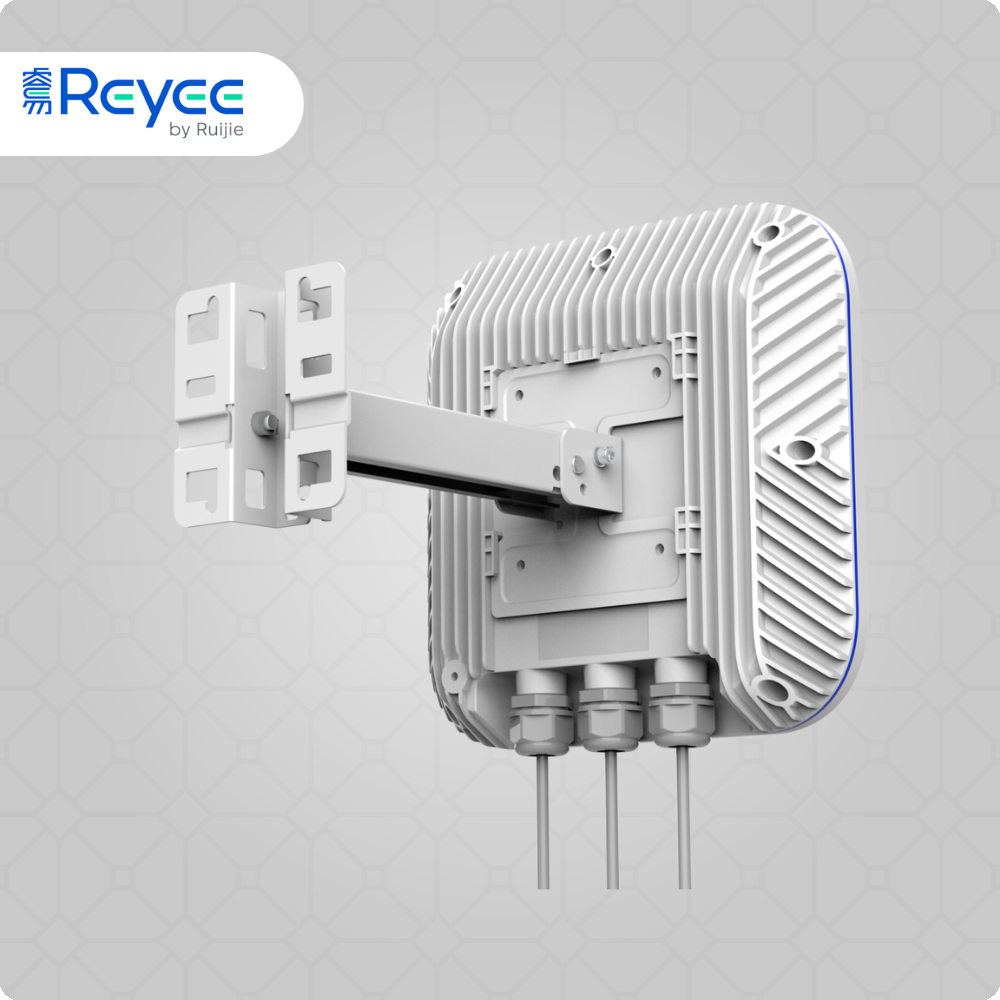

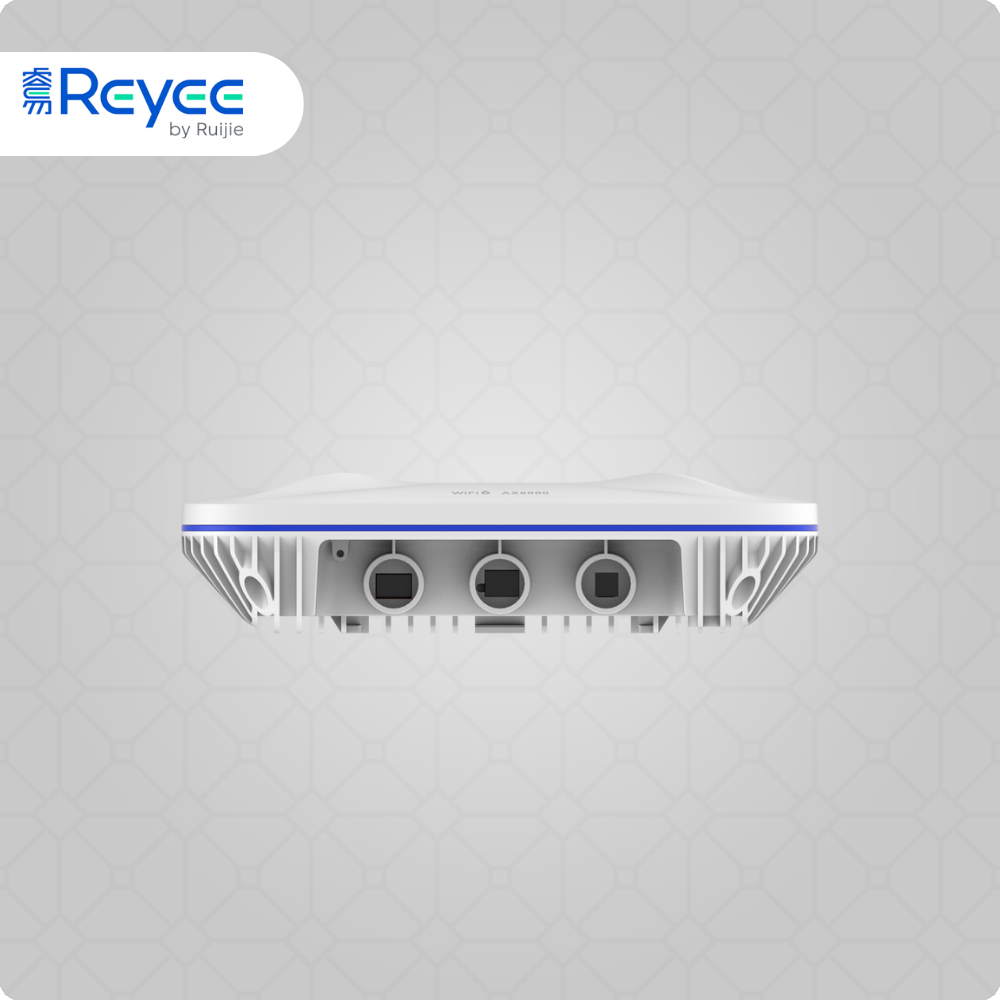

RG-RAP6260(H) AX6000 High-density Outdoor IP68 Omni-directional Access Point

The RG-RAP6260(H) is a premium outdoor Wi-Fi 6 access point with multi-gigabit uplink and extended coverage engineered for demanding wireless deployments in expansive outdoor environments requiring high-performance backhaul. This 802.11ax AX6000 outdoor AP features dual-radio design with 4×4:4 MU-MIMO on both 2.4 GHz and 5 GHz bands delivering up to 5,950 Mbps combined throughput: 1,147 Mbps on 2.4 GHz and 4,803 Mbps on 5 GHz. Wi-Fi 6 (802.11ax) operation on both bands with backward compatibility to Wi-Fi 5/4 (802.11ac/n/a/b/g) ensures support for all existing devices. Advanced 4×4 eFEM (external Front-End Module) technology on both 2.4 GHz and 5 GHz bands combined with ultra-high transmit power (32 dBm combined on both bands, single-stream: 26 dBm) delivers extended outdoor coverage up to 400 meters @ 5 GHz and 150 meters @ 2.4 GHz (recommended: 200m @ 5 GHz, 50m @ 2.4 GHz) for expansive outdoor venues, large campus networks, industrial facilities, and high-performance environments. 8 spatial streams total with superior 4×4 MIMO configuration ensures maximum throughput and exceptional performance. Advanced modulation support including 1024-QAM, OFDMA, BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM ensures efficient spectrum utilization and maximum throughput.

The RG-RAP6260(H) features flexible dual uplink options with 1 × 2.5 Gigabit Ethernet port (10/100/1000/2500BASE-T) plus 1 × 1GE SFP fiber port for high-performance connectivity in remote locations, Point-to-Point wireless bridges, or fiber-rich environments, 160 MHz channel width support on 5 GHz for maximum throughput, auto/20/40/80/160 MHz channel flexibility on 5 GHz, auto/20/40 MHz on 2.4 GHz with PoE+ powered (IEEE 802.3at) for simplified outdoor installation and low operational costs. IP-rated weatherproof outdoor enclosure (300mm × 300mm × 75.5mm) withstands harsh environmental conditions including rain, dust, extreme temperatures, and tropical climates across Kenya, Uganda, and East Africa. Ultra-high transmit power of 32 dBm combined on both bands with region-specific regulatory compliance ensures exceptional signal penetration and extended coverage across expansive outdoor areas. Robust square form factor with professional white housing and durable ≤3.5 kg construction enables reliable outdoor installation. Advanced features include 4×4 MU-MIMO for simultaneous multi-device communication, OFDMA for efficient spectrum utilization, advanced eFEM technology for extended range, Reyee Mesh technology for self-healing outdoor mesh networks, built-in captive portal for outdoor guest WiFi authentication, VLAN support, QoS, and advanced outdoor RF optimization.

Operating across multiple frequency bands: 2.4 GHz (2.400-2.4835 GHz) and 5 GHz (5.150-5.850 GHz) with country-specific regulatory compliance supports deployments across diverse international markets. Management via Ruijie Cloud platform with real-time monitoring, firmware updates, and centralized configuration, Reyee mobile app, or standalone web GUI enables remote multi-site outdoor network administration. Cloud-managed outdoor Wi-Fi 6 with multi-gigabit uplink perfect for businesses managing multiple expansive outdoor locations across East Africa. Weatherproof outdoor-rated installation with flexible 2.5GbE Ethernet or fiber connectivity. NDAA compliant with CE, FCC, and international certifications.

Ideal for large outdoor university campuses and educational grounds, resort properties and expansive hotel gardens, industrial facilities and large warehouse complexes, remote sites requiring fiber uplink connectivity, Point-to-Point (PtP) wireless bridge deployments, outdoor event venues and recreational spaces, transportation hubs and expansive outdoor facilities, government complexes and administrative campuses requiring premium Wi-Fi 6 with AX6000 speeds, extended outdoor coverage (400m @ 5 GHz), ultra-high transmit power (32 dBm), weatherproof design, flexible 2.5GbE/fiber uplink options, advanced 4×4 eFEM technology, 160 MHz channel support, cloud management, and outdoor mesh networking across East Africa.

✅ IN STOCK
