The
RG-RAP2260(H) is a
premium indoor ceiling-mount Wi-Fi 6 access point with ultra-high transmit power and extended coverage engineered for large indoor venues requiring exceptional wireless performance and coverage. This
802.11ax AX6000 AP features
dual-radio design with 4×4:4 MU-MIMO on both 2.4 GHz and 5 GHz bands delivering up to
5,950 Mbps combined throughput: 1,147 Mbps on 2.4 GHz and 4,803 Mbps on 5 GHz.
Wi-Fi 6 (802.11ax) operation on both bands with backward compatibility to Wi-Fi 5/4 (802.11ac/n/a/b/g) ensures support for all existing devices.
Built-in omnidirectional antennas (4.0 dBi @ 5 GHz with 4 antennas, 3.0 dBi @ 2.4 GHz with 4 antennas) combined with ultra-high transmit power (32 dBm combined on both bands, single-stream: 26 dBm) deliver extensive indoor coverage of 190 square meters (2,045 square feet) for large conference halls, ballrooms, lecture halls, and expansive indoor venues.
8 spatial streams total with superior 4×4 MIMO configuration ensures maximum throughput and exceptional multi-device performance.
Advanced modulation support including 1024-QAM, OFDMA, BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM ensures efficient spectrum utilization and maximum throughput.
The
RG-RAP2260(H) features
160 MHz channel width support on 5 GHz for maximum throughput, auto/20/40/80/160 MHz channel flexibility on 5 GHz, auto/20/40 MHz on 2.4 GHz with
PoE+ powered (IEEE 802.3at) for simplified installation and low operational costs.

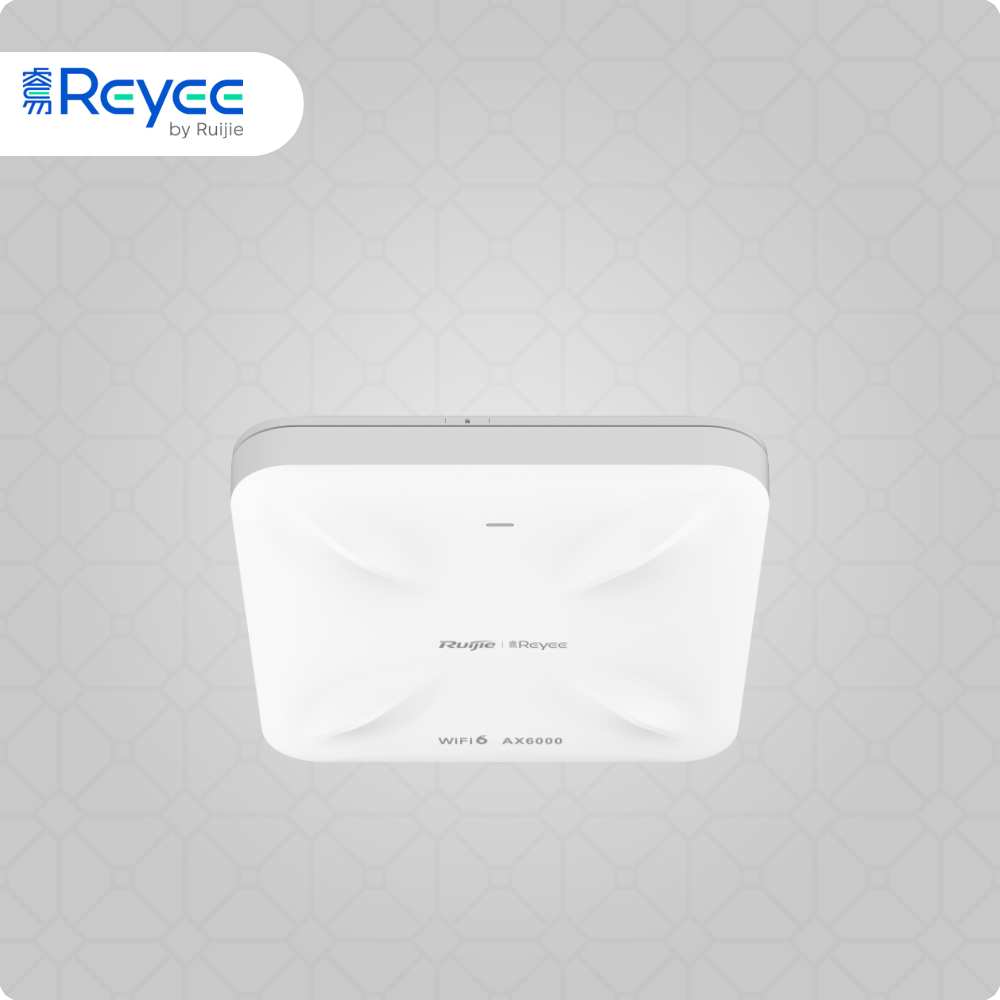

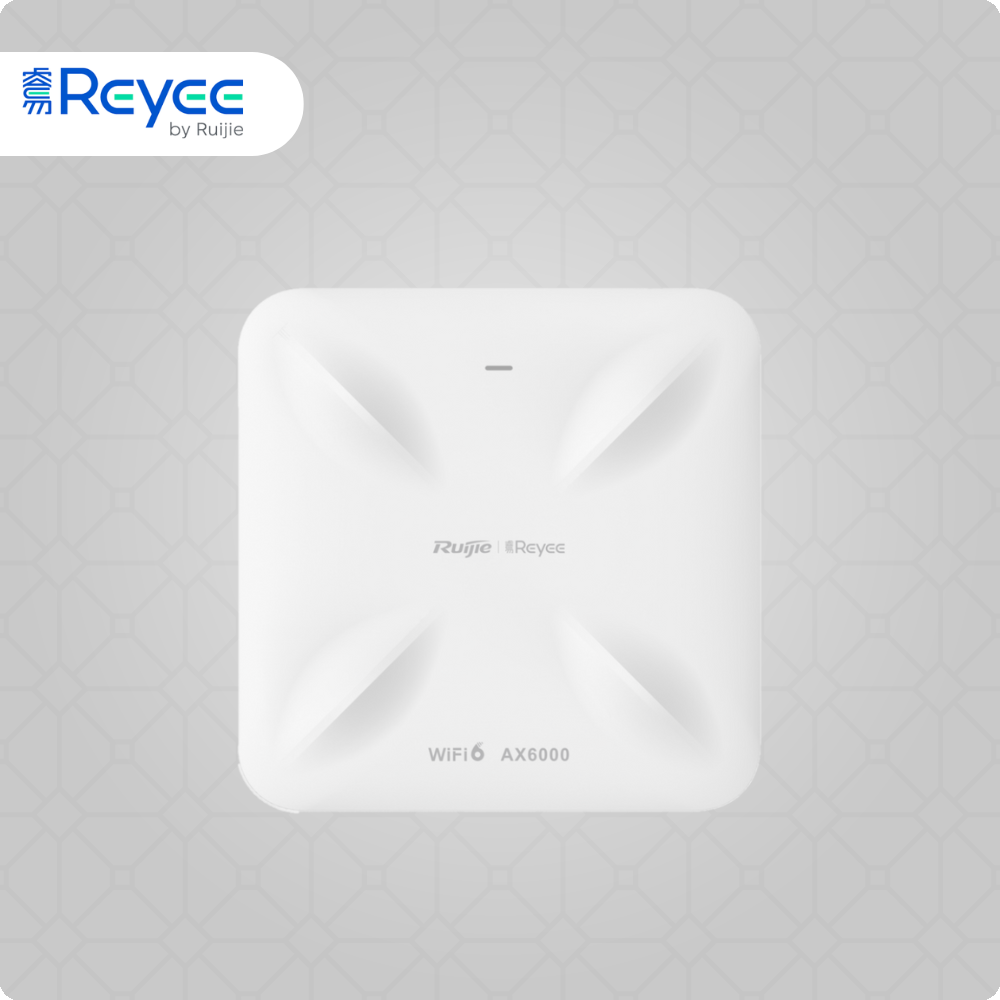

Compact square ceiling design with 230mm × 230mm × 49.5mm dimensions and
lightweight ≤1.36 kg construction blends elegantly into modern commercial interiors including conference centers, hotels, universities, and premium venues.
Ultra-high transmit power with region-specific regulatory compliance ensures strong signal penetration and extended coverage across large indoor areas with multiple walls and obstructions.
Professional white housing with discreet ceiling-mount form factor.
Advanced features include 4×4 MU-MIMO for simultaneous multi-device communication, OFDMA for efficient spectrum utilization, Reyee Mesh technology for self-healing wireless mesh networks, built-in captive portal for guest WiFi authentication, VLAN support, QoS, band steering, airtime fairness, and advanced indoor RF optimization.
Operating across
multiple frequency bands: 2.4 GHz (2.400-2.4835 GHz) and 5 GHz (5.150-5.850 GHz) with country-specific regulatory compliance supports deployments across diverse international markets.
Management via Ruijie Cloud platform with real-time monitoring, firmware updates, and centralized configuration, Reyee mobile app, or standalone web GUI enables remote multi-site administration.
Cloud-managed WiFi perfect for businesses managing multiple large indoor venues across East Africa.
Ceiling-mount installation with compact square form factor.
NDAA compliant with CE, FCC, and international certifications.
Ideal for
large conference centers and exhibition halls, hotel ballrooms and banquet spaces, university lecture halls and auditoriums, corporate training rooms and large meeting spaces, large retail stores and shopping centers, healthcare facilities and hospital wings, airports and transportation terminals, government buildings and administrative centers requiring
premium Wi-Fi 6 with AX6000 speeds, extensive indoor coverage (190 sqm), ultra-high transmit power (32 dBm), advanced 4×4 MIMO, 160 MHz channel support, built-in omnidirectional antennas, compact ceiling design, cloud management, and mesh networking across East Africa.
✅ IN STOCK
