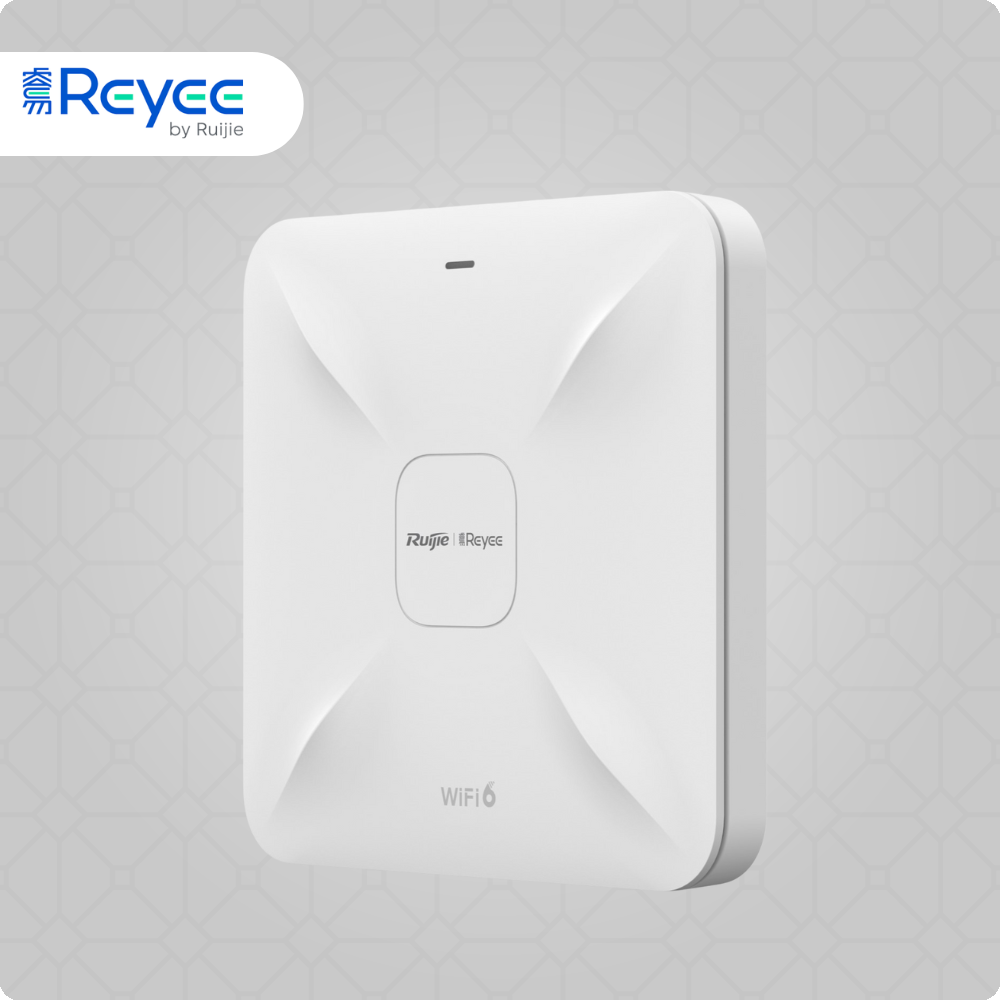

The
RG-RAP2260(E) is a
high-performance ceiling-mount Wi-Fi 6 access point designed for enterprise wireless deployments requiring Multi-Gigabit connectivity. This
802.11ax AX3200 AP features
8 spatial streams (4×4 MIMO @ 2.4 GHz, 4×4 MU-MIMO @ 5 GHz) delivering up to
3,201 Mbps combined throughput: 800 Mbps on 2.4 GHz and 2,401 Mbps on 5 GHz.
Dual-band operation (2.400-2.4835 GHz and 5.150-5.850 GHz) with backward compatibility to Wi-Fi 5/4 (802.11ac/n/a/b/g) ensures support for legacy devices.
Channel bandwidth support: auto/20/40 MHz @ 2.4 GHz and auto/20/40/80 MHz @ 5 GHz.
Built-in omnidirectional antennas: 4 @ 2.4 GHz and 4 @ 5 GHz with 3 dBi gain on both bands provide
190 m² (2,045.14 ft²) coverage.
The
RG-RAP2260(E) supports
256 associated devices (64 @ 2.4 GHz, 256 @ 5 GHz) with
recommended capacity of 120 devices for 802.11ax (16 @ 2.4 GHz, 104 @ 5 GHz).

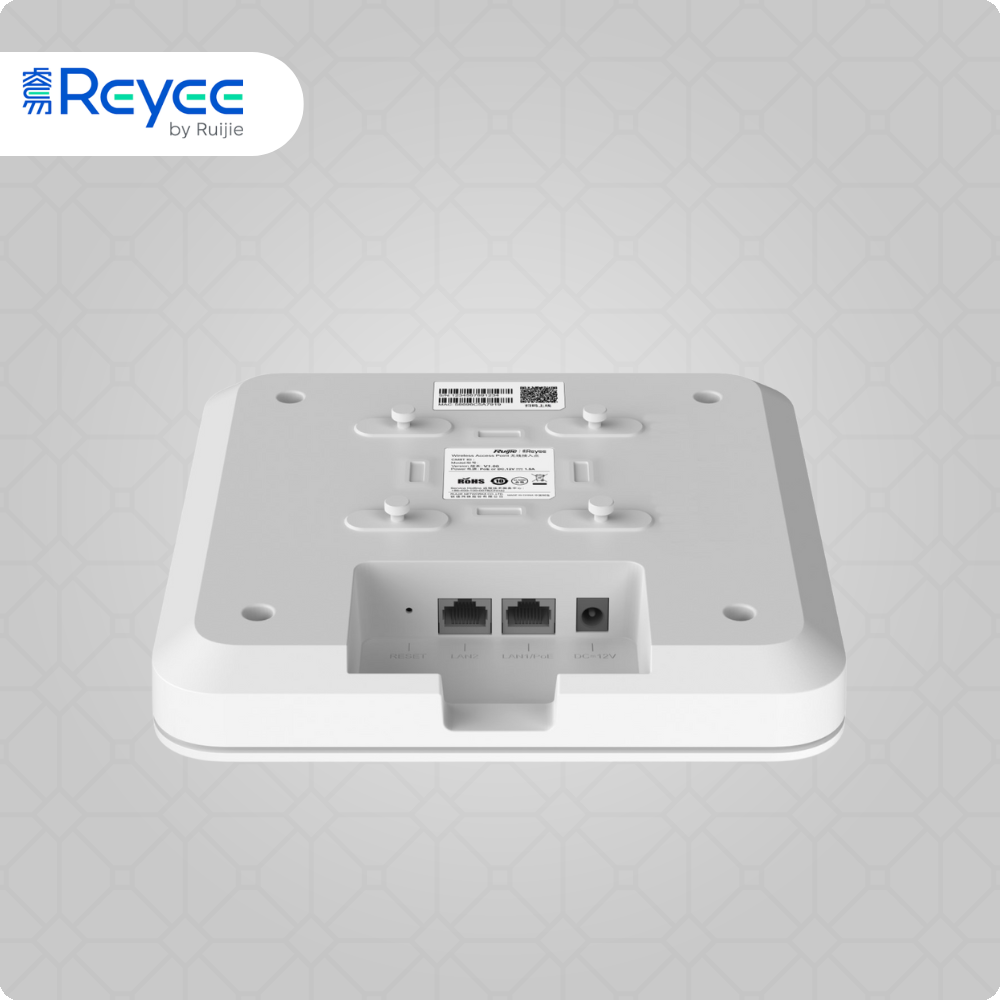

Networking: 1 × 2.5 GbE port (10/100/1000/2500BASE-T) + 1 × 1 GbE port (10/100/1000BASE-T) for high-speed wired backhaul and device connectivity.
PoE+ powered (IEEE 802.3at) or 12V DC adapter (12V, 2.5A) with maximum 25.4W power consumption.
Advanced features include OFDMA, WMM, 802.1Q VLAN, radio-based client limiting, AP mode and routing mode support.
Maximum transmit power: 29 dBm combined @ 2.4 GHz and 5 GHz (23 dBm single-stream) with country-specific restrictions.
8 maximum SSIDs for network segmentation.
Operating temperature range of
0°C to 40°C (32°F to 104°F) with
-40°C to +70°C storage temperature and
5-95% humidity tolerance support indoor deployments.
Receive sensitivity ranges from -91 dBm (11b @ 1 Mbps) to -52 dBm (11ax @ 80 MHz MCS11) for reliable connectivity.

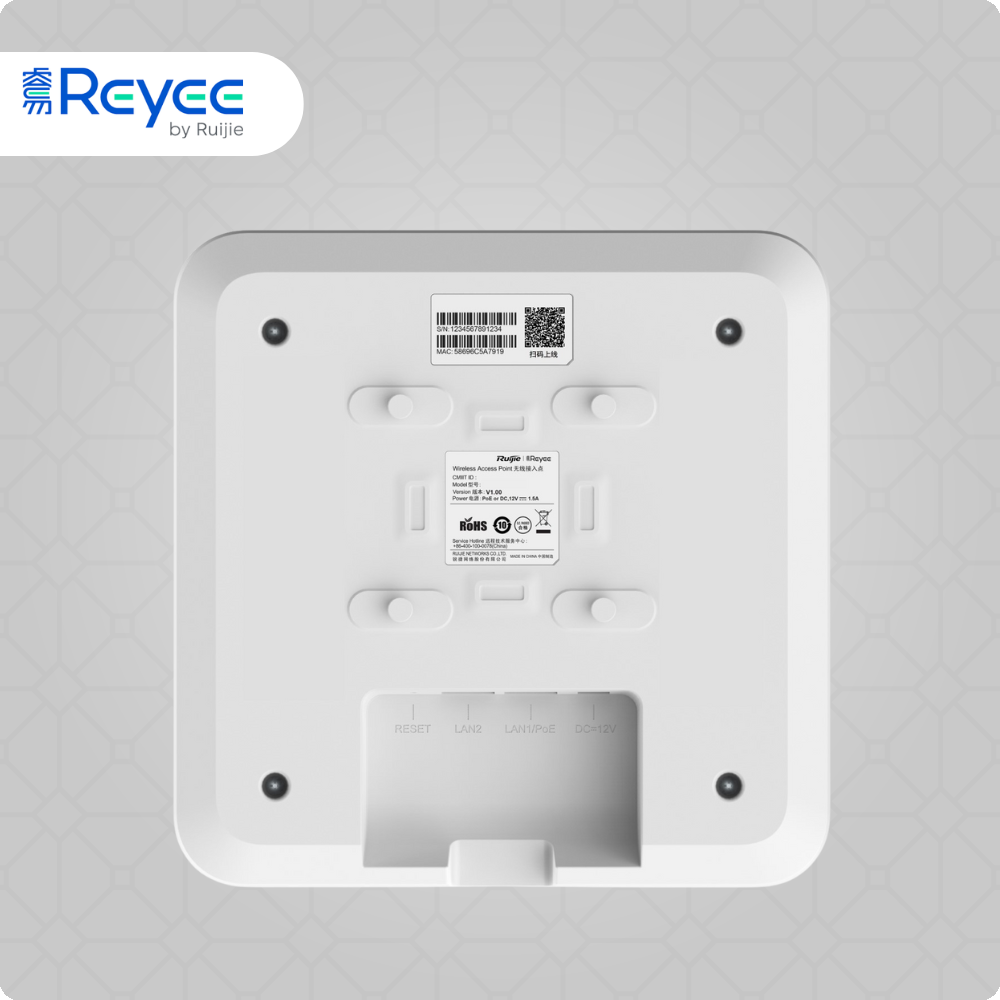

Ceiling/wall mounting options.
IP41 rating with ±2 kV surge protection and 400,000 hours MTBF.
Compact dimensions of 220 × 220 × 35 mm (8.66 × 8.66 × 1.38") and
≤0.55 kg (1.21 lbs) weight.
16 MB Flash memory and 256 MB DDR3 RAM.
Management via Ruijie Cloud platform, Reyee mobile app, or standalone web GUI.
CE, CB certifications with RoHS compliance.
Ideal for
large hotels and premium hospitality venues, university campuses and educational institutions, corporate offices and enterprise environments, convention centers and event venues, large healthcare facilities, shopping malls and commercial centers, and high-density deployments requiring
high-performance Wi-Fi 6 with AX3200 speeds, 4×4 MIMO, Multi-Gigabit 2.5 GbE uplink, and 256 device capacity across East Africa.
✅ IN STOCK
