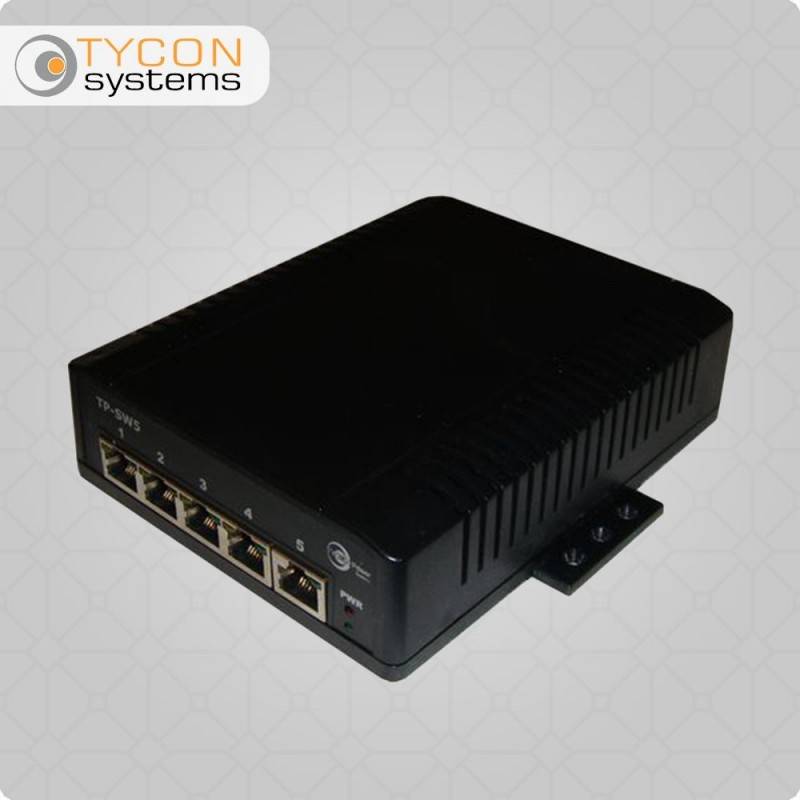

12-56V 5 Port Uni-Volt Gigabit Passive PoE Switch

TP-SW5G-NC

Universal Voltage 10/100/1000MB PoE Switch. Switch accepts universal voltage (12- 57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive PoE input on port 5. 1A per port

On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

Tycon Power® sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.

DATA SHEET
