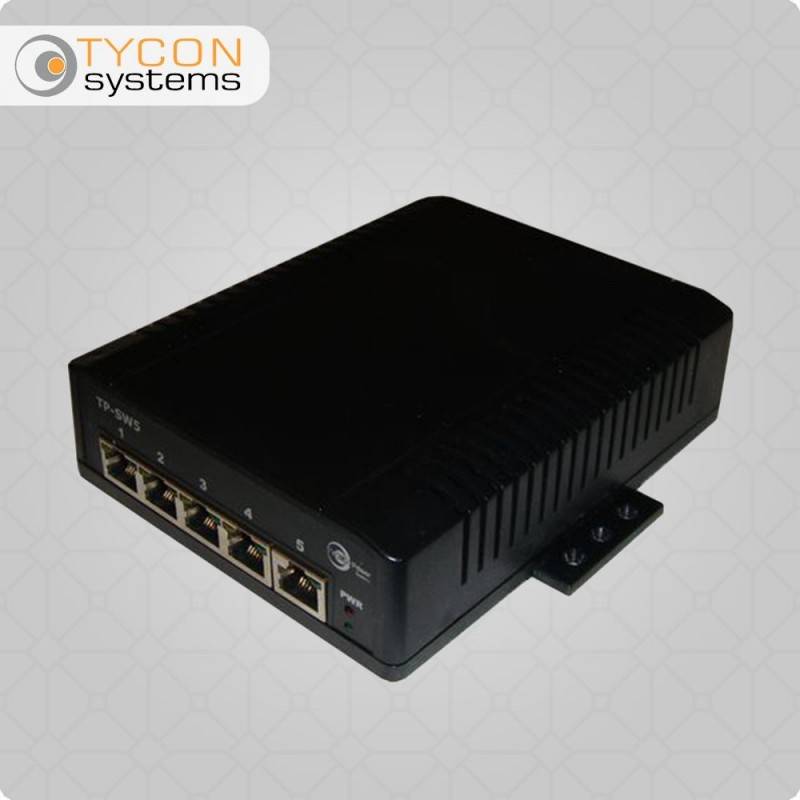

12-56V 5 Port Multi-Volt Gigabit Passive PoE Switch
TP-SW5G-MULTI
Universal Multiple Voltage (MultiVolt™) 10/100/1000MB PoE Switch. Switch accepts up to 4 different voltages (12-57VDC) so user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port. 1A per port.
On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
Tycon Power® sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.
